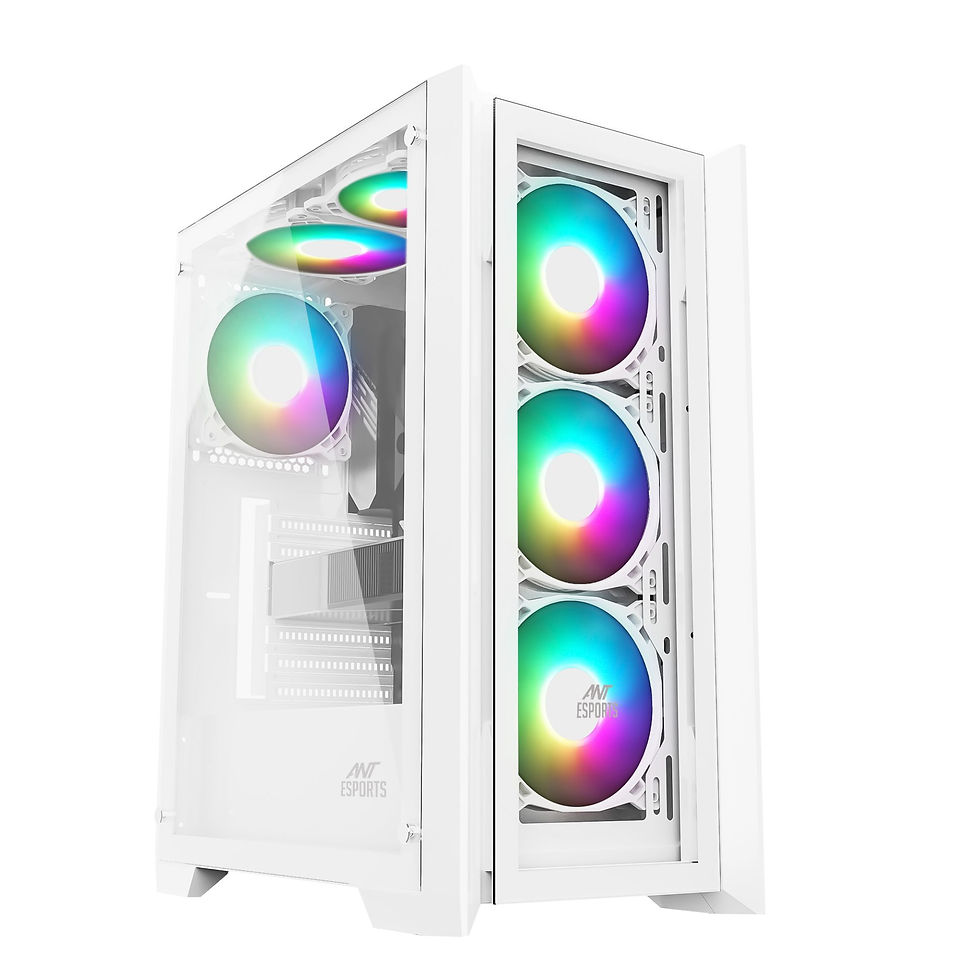

ANT Esports ICE‑170TG White — Specifications

Model Name: ICE‑170TG (White)  Type: Mid‑Tower gaming cabinet / PC case Supported Motherboards: ATX, Micro‑ATX, Mini‑ITX

Physical Dimensions

• Chassis Size (L × W × H): 368 × 216 × 465 mm

• Packing / Box Size: 523 × 276 × 429 mm

Cooling / Fans & Radiator Support

• Pre‑installed fans: 4 × 120 mm ARGB (3 at front + 1 at rear)

• Fan mounting support:   • Front: 3 × 120 mm or 2 × 140 mm    • Top: 2 × 120 mm or 2 × 140 mm    • Rear: 1 × 120 mm (pre‑installed)    • Bottom / Side: None specified (no mounts listed)

• Liquid cooling / radiator support:   • Front: supports up to 360 mm radiator    • Top: up to 240 mm radiator    • Rear: up to 120 mm radiator

Clearance & Compatibility

• Maximum GPU (VGA) Card Length: 305 mm

• Maximum CPU Air Cooler Height: 175 mm

Storage, Drive Bays & Expansion

• Drive Bays: 2 × 3.5″ HDD + 2 × 2.5″ SSD

• Expansion Slots: 7 PCI slots

I/O Panel & Other Features

• I/O Ports: 1 × USB 3.0, 2 × USB 2.0, Audio In, Mic, Power Button, Reset Button

• Side/Front Panel: Tempered glass front & side panel in many listings

• Additional features:   • Moveable HDD cage under PSU shroud for better layout / cable management   • Mesh anti‑dust filters in some parts (front & top likely)

Warranty & Other Details

• Warranty Period: 1 year from date of purchase What’s Covered: Manufacturing defects in materials / workmanship under normal usage
