ANT ESPORTS PEPPER 5F MID‑TOWER GAMING CABINET (BLACK) Form‑Factor: ATX / Micro‑ATX / Mini‑ITX
Key Features & Specifications:

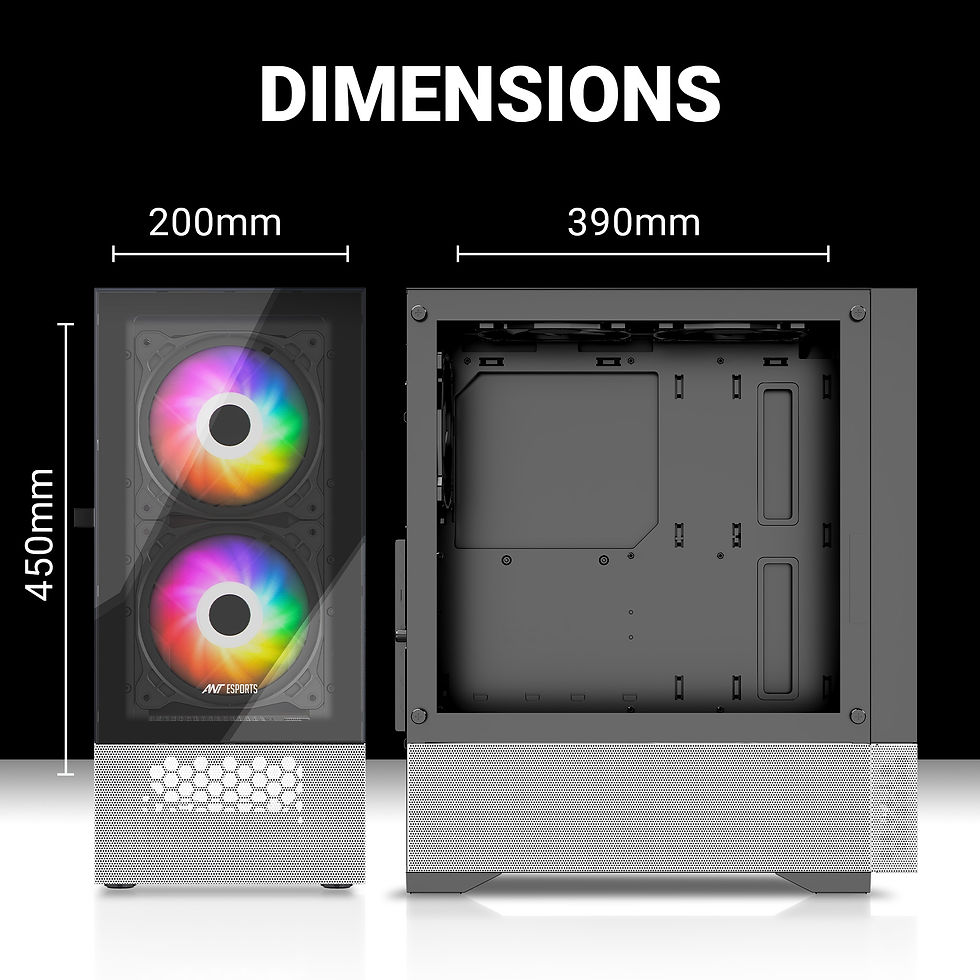

Chassis Dimensions (L × W × H): 390 × 200 × 450 mm
Packing Dimensions: approx. 490 × 250 × 445 mm
Material: SPCC Steel + Tempered Glass front and side panels
Storage / Drive Bays:
Supports up to 2 × 3.5" HDDs and 2 × 2.5" SSDs, or alternatively 4 SSDs in certain configurations.
No external 5.25" optical drive bay.
Cooling / Fan & Airflow:
Pre‑installed Fans: • 2 × 140 mm (Front) • 2 × 120 mm (Top) • 1 × 120 mm (Rear)
Full Fan Support: • Front: up to 3 × 120 mm or 2 × 140 mm • Top: up to 2 × 120 mm or 1 × 140 mm • Bottom: up to 2 × 120 mm • Rear: 1 × 120 mm
Liquid Cooling / Radiator Support: • Front: up to 360 mm • Top: up to 280 mm radiator support in some configurations • Rear: 120 mm
Clearances & Compatibility:
Maximum GPU (Graphics Card) Length: ~ 320 mm
Maximum CPU Cooler Height: ~ 155 mm
Expansion Slots: 7
I/O Panel:
1 × USB 3.0 port
2 × USB 2.0 ports
Audio + Mic TRRS Jack
Power & Reset Buttons
Warranty / Service Info:
Warranty Period: 1 Year from the date of purchase.
What’s Covered: Manufacturing defects in materials and workmanship under normal use.
