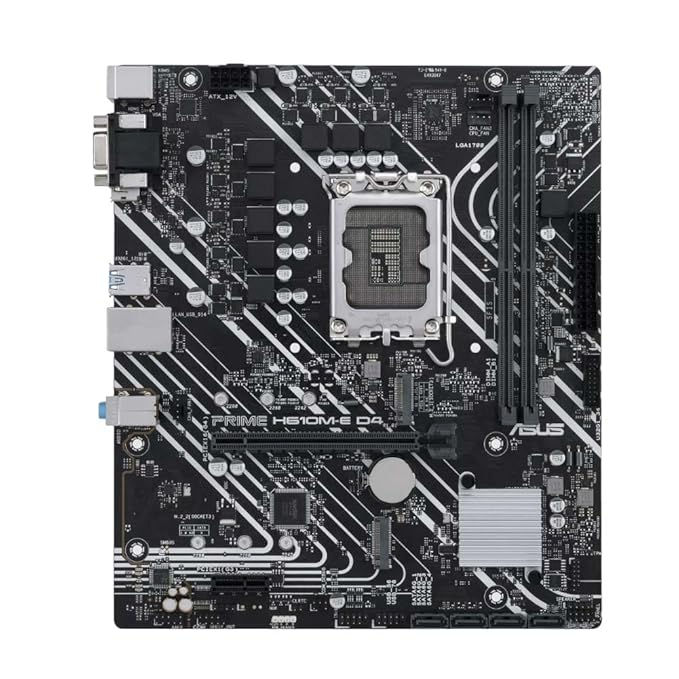

The ASUS PRIME H610M-E D4 is a micro-ATX motherboard designed for Intel 12th, 13th, and 14th Gen processors using the LGA 1700 socket. It provides robust performance and versatile features suitable for productivity and general computing tasks. Key specifications and features include:
CPU Compatibility: Intel LGA 1700 socket supporting 12th Gen Intel Core, Pentium Gold, and Celeron processors with Intel Turbo Boost Technology.
Chipset: Intel H610 chipset.
Memory: 2 x DDR4 DIMM slots supporting up to 64GB of RAM, with speeds of 2133 to 3200 MHz and Intel Extreme Memory Profile (XMP) support.
Storage: Dual M.2 slots (PCIe 3.0 x4 and x2 modes) supporting up to 32 Gbps speeds for fast boot and load times, and 4 x SATA 6 Gb/s ports.
Expansion Slots: 1 x PCIe 4.0 x16 slot for graphics cards and 1 x PCIe 3.0 x1 slot for additional cards.
Graphics Outputs: 1 x DisplayPort (supporting up to 4K@60Hz), 1 x HDMI port, and 1 x D-Sub port for multi-display support.
Networking: Realtek 1Gb Ethernet for reliable wired network connectivity.
USB Connectivity: Multiple USB ports including 2 x USB 3.2 Gen 1 Type-A, 2 x USB 2.0 ports on the rear, plus internal headers supporting additional USB 3.2 Gen 1 and USB 2.0 ports.
Audio: Realtek 7.1 Surround Sound High Definition Audio Codec with premium capacitors, audio shielding, and jack detection for enhanced audio fidelity.
Cooling: Equipped with PCH heatsink and fan headers supporting PWM/DC fans, configurable through Fan Xpert 2+ software and UEFI BIOS for optimal thermal management.
Protection: ASUS 5X Protection III with hardware safeguards such as SafeSlot Core, over-voltage protection, and stainless-steel back I/O.
Software Features: Armoury Crate for centralized control and system tuning, AI Suite 3, TurboV EVO, and other ASUS utilities.
Form Factor: Micro-ATX, compact and suitable for a range of PC cases.
Other Features: Q-LED indicators for troubleshooting, Q-DIMM and Q-Slot for easy upgrades.
Warranty:
The ASUS PRIME H610M-E D4 motherboard comes with a standard 3-year manufacturer warranty covering defects in materials and workmanship under normal use conditions. The warranty starts from the date of purchase and excludes damage caused by misuse, unauthorized repairs or modifications, physical damage, and environmental causes. Warranty service must be carried out through authorized ASUS service centers.
