Product Description

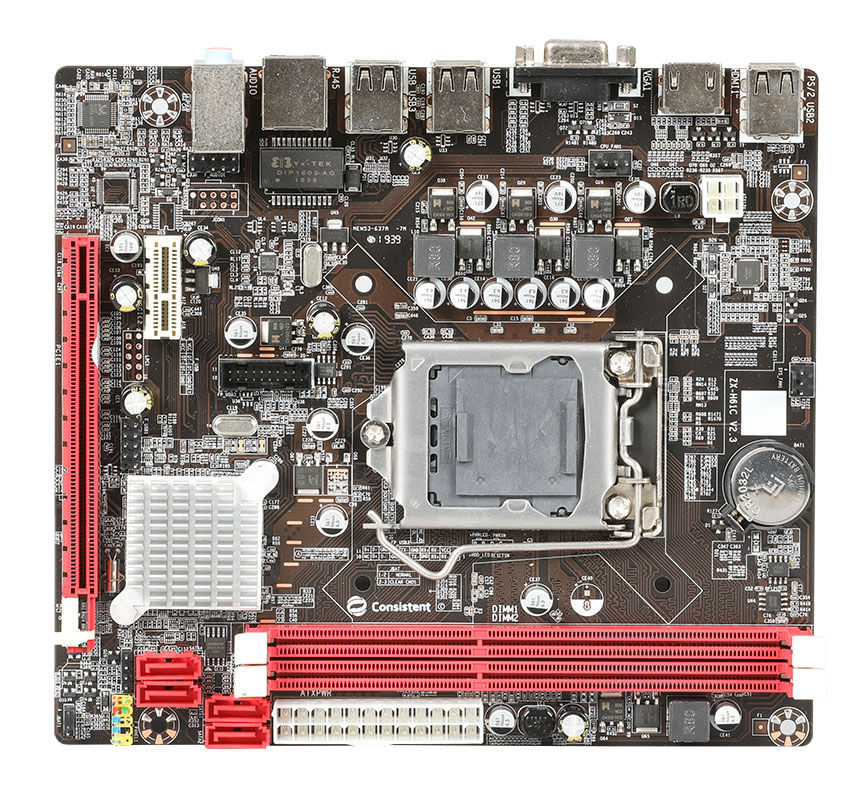

The Consistent Motherboard CMB H61 is a Micro-ATX form factor motherboard designed to support Intel 2nd and 3rd generation Core i3, i5, and i7 processors. It is ideal for users looking to build or upgrade desktop PCs with reliable performance and modern features tailored for basic to moderate computing needs.
Key features include:
CPU Support: Compatible with Intel 2nd and 3rd Gen Core i3/i5/i7 processors using LGA 1155 socket.
Chipset: Intel H61 Express Chipset.
Memory Support: Dual-channel DDR3 RAM at 1066/1333/1600 MHz speeds, supporting up to 16GB capacity.
Expansion Slots:
1 PCI Express x16 slot for dedicated graphics card.
1 NVME/NGFF M.2 slot for high-speed SSD storage.
I/O Interface:
6 USB 2.0 ports.
1 VGA port and 1 HDMI port for video output.
1 RJ45 LAN port supporting 100/1000 Mbps Ethernet.
3-in-1 audio port with onboard 6-channel HD audio codec.
Power Connectors: Standard 24-pin ATX and 4-pin ATX 12V power connectors.
Additional Features: Includes connectors for USB, audio, speakers, fans, and debugging.
Form Factor & Dimensions: Micro-ATX architecture, approximately 17 x 17 cm size.
Build: Durable and designed to fit compact cases without compromising on expansion options.
Warranty Information
The motherboard comes with a 3-year manufacturer replacement warranty.
Warranty service is provided through Consistent Infosystems authorized service centers.
For warranty claims or support, customers can contact:
Email: cecare@consistent.in
Toll-Free: 1800-1034-593 (9 AM – 6 PM, PAN India)
Summary Table
| Feature | Details |
|---|---|
| CPU Support | Intel 2nd & 3rd Gen Core i3, i5, i7 |
| Chipset | Intel H61 Express |
| Memory | Dual-channel DDR3, 1066/1333/1600 MHz, up to 16GB |
| Expansion Slots | 1x PCIe x16, 1x NVME/NGFF M.2 slot |
| Video Outputs | VGA, HDMI |
| USB Ports | 6x USB 2.0 |
| LAN | 100/1000 Mbps RJ45 |
| Audio | 6-channel HD audio codec onboard |
| Power Connectors | 24-pin ATX, 4-pin ATX 12V |
| Form Factor | Micro-ATX (17 x 17 cm) |
| Warranty | 3 years manufacturer warranty |
| Warranty Support Contact | cecare@consistent.in, 1800-1034-593 |
