Description
Channels: 16-channel BNC inputs, auto-adaptive for HDCVI/AHD/TVI/CVBS/IP cameras.
Resolution: Supports up to 1080P Full HD recording on all channels, with select models allowing for higher MP IP camera integration.
Compression: Advanced video compression with H.265+/H.265/H.264+/H.264 dual-stream support for efficient storage use.
Bandwidth: Can handle up to 64–96Mbps incoming bandwidth (model-dependent).
Storage: 1 SATA HDD bay, supports up to 6TB (some models up to 10TB/16TB).

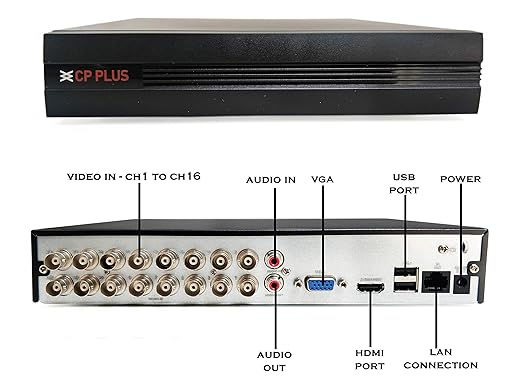

Outputs: HDMI and VGA simultaneous video outputs for local monitoring.
Audio: RCA two-way audio in/out (model-dependent).
Smart Functions: Motion detection, video loss alerts, multiple search/playback modes, digital zoom, and user account management (up to 128 users).
Remote Access: Mobile compatibility (iCMOB/gCMOB apps), CMS software for PC (KVMS Pro).
Networking: Ethernet RJ-45 port, ONVIF and other standard protocols for interoperability.
Physical Specs: Compact design, typically around 260mm x 236mm x 48mm, weight approx. 0.8–0.9kg (without HDD).
Operating Environment: -10°C to +45°C, 10–90% humidity.
Power: DC12V/2A, <10W power consumption (without HDD).
Warranty
The CP PLUS 16 Channel Full HD DVR typically comes with a 2-year manufacturer (service) warranty. Warranty coverage includes manufacturing defects and hardware faults under normal usage. Accessories like adapters, mouse, remote, as well as damages due to mishandling or electrical burn are usually not covered. The warranty is non-transferable and applies to the first end user only; claims are processed through authorized service centers and require retaining the purchase invoice for support. Warranty processing times may take 10–15 days depending on claim nature and center.
