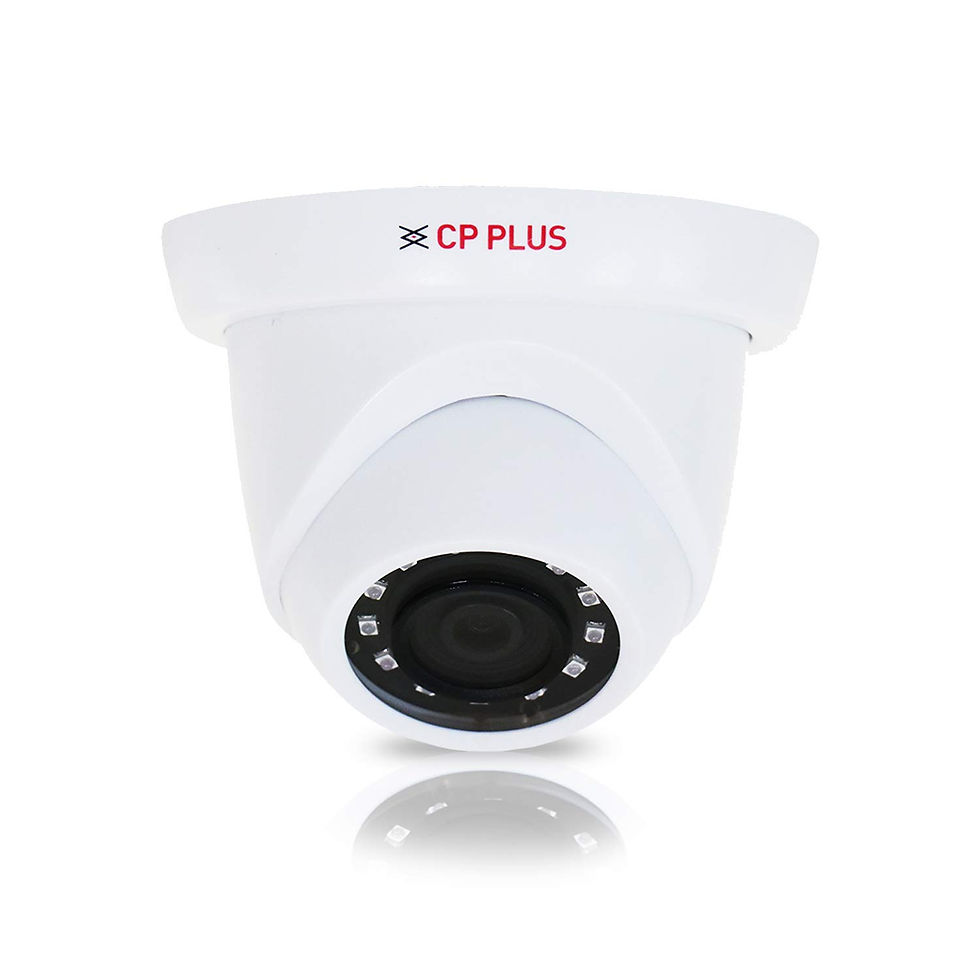

Product Description
Camera Type: Dome, Wired
Image Sensor: 1/2.7” 2.4MP CMOS Image Sensor
Resolution: 2.4MP Full HD (1920×1080), supports HD formats (HDCVI/AHD/HDTVI/CVBS)
Lens: 3.6mm fixed lens (2.8mm optional on some models)
Frame Rate: 25/30fps @ 2.4MP (1080P)
IR Night Vision: Smart IR, up to 20 meters range for clear low-light imaging
Day/Night: Auto (ICR) switch for 24/7 surveillance
Built-in Audio: Select models include a built-in microphone for audio recording
Digital Features: DWDR (Digital Wide Dynamic Range), 2D-DNR (Digital Noise Reduction), AWB (Auto White Balance), AGC (Automatic Gain Control), BLC (Back Light Compensation), HLC
Video Output: Switchable between analog HD formats and CVBS (for compatibility)
OSD Menu: On-screen display menu, controllable via coaxial cable
Power Consumption: Max 2.3W (IR on), 12V DC ±30%
Operating Temperature: –40°C to +60°C, <95% RH (non-condensing)
Body/Casing: Compact, plastic (white color), indoor use recommended
Dimension: ~85mm × 85mm × 69mm (varies slightly by model)
Weight: Around 0.09–0.25kg
Key Features
Smart IR Night Vision: Ensures clear black-and-white video up to 20m in total darkness
Full HD Video: Delivers detailed 1080p footage
Easy Compatibility: Works with major HD analog DVRs for flexible integration
Discreet Design: Small dome profile suits homes, shops, and offices
Warranty Information
Warranty Period: Standard 2 years (may vary slightly by seller or region)
Warranty Type: Carry-in/Pick-up (off-site) warranty service
Coverage: Covers manufacturing defects only; does not include physical or water damage outside product specifications
Claim Requirements: GST invoice or proof of first purchase is required; warranty is non-transferable and only valid for the original purchaser
Service: Service/repair is provided at authorized CP PLUS centers
