Product Description

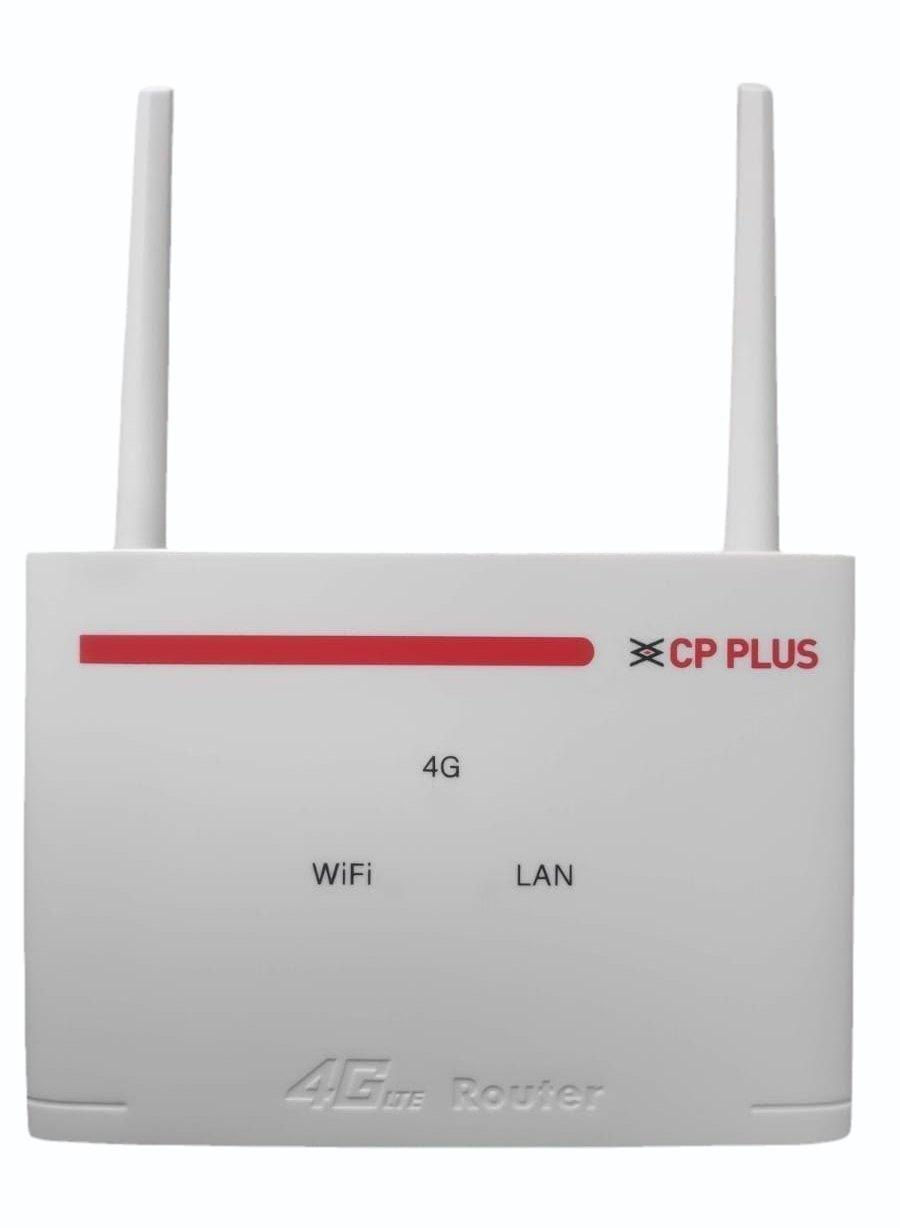

Model Examples: CP-XR-DE21-S, CP-XR-DN211-S
Network: Supports 4G LTE (LTE CAT 4), compatible with FDD LTE, TDD-LTE, and WCDMA standards, covering multiple 4G bands such as B1, B3, B5, B7, B8, B20, B28, B38, B40, and B41 for wide network compatibility.
Wi-Fi: Operates on 2.4GHz frequency with 802.11 b/g/n standards; typical Wi-Fi speed up to 150 Mbps (DL) and 50 Mbps (UL) for LTE CAT 4; coverage up to 10 meters or more depending on environment; supports up to 8 connected Wi-Fi users.
Ports: Typically includes one 10/100 Mbps LAN/WAN port for wired connection.
SIM Slot: 2FF Mini SIM card slot for 4G SIM card integration.
Functions: Supports SMS, IPv4/IPv6, SIM lock, WPS and Reset buttons for easy setup, and various Wi-Fi security protocols including OPEN, WPA-PSK, WPA2-PSK, and WPA/WPA2 encryption.
Antennas: External or internal 4G and Wi-Fi antennas for better signal strength.
Power: Operates on DC 12V/800mA with power consumption under 10W.
Physical: Compact and lightweight, dimensions around 150mm x 101mm x 35-40mm; weight approx. 200-425g.
Additional Features: User-friendly interface; provides stable high-speed internet access especially where wired broadband is unavailable; supports connectivity for multiple devices including smartphones, laptops, CCTV DVRs, NVRs, Wi-Fi cameras, and IoT devices; ideal for remote work, streaming, and monitoring security systems.
Warranty Information
Warranty Period: Generally 1 year manufacturer warranty from CP PLUS.
Coverage: Covers manufacturing defects only. It does not cover physical damage, misuse, or issues caused by external factors.
Warranty Type: Off-site repair or replacement services provided through authorized CP PLUS service centers.
Claim Requirements: Original purchase invoice or GST bill is required to avail warranty support.
Validity: Warranty is valid only for the original purchaser and is non-transferable.
