OVRVIEW :
ATX 3.0 / 3.1 Compliant

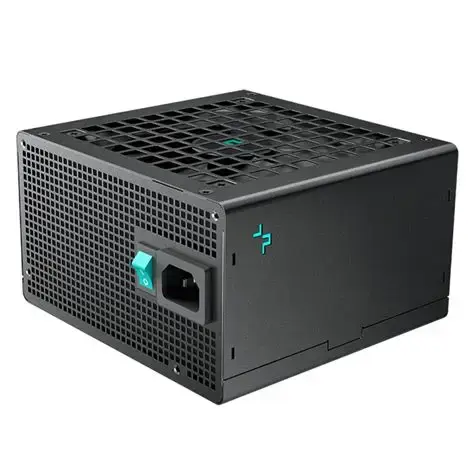

Built to meet Intel’s latest standard, the PL650D handles up to 200% power excursions for 0.1 ms—great for GPU power spikes—plus maintains ≥ 70% efficiency at light loads. It includes a native PCIe 5.x 12V-2×6 (16-pin) connector rated up to 300 W.
Efficiency & Certification
80 PLUS Bronze certified, delivering ≥85% efficiency at 50% load.
Cooling & Build Quality
Equipped with a 120 mm hydro-bearing fan for quiet and reliable cooling. It uses active PFC and DC-to-DC conversion, and features quality electrolytic capacitors to support a ≥ 16 ms hold-up time at full load.
Protection Suite
Offers comprehensive safeguards: OVP, OPP, SCP, OTP, OCP, UVP, SIP, and NLO. TechEzoneLB
Reliability & Electrical Timing
MTBF: ≥100,000 hours
Power Good Signal Delay: 100–150 ms
Hold-up Time: ≥16 ms at full load
Connector Layout
1× ATX 20+4 pin
2× EPS 4+4 pin (CPU)
3× PCIe 6+2 pin + 1× 12V-2x6 (16-pin)
SATA ×3–6, Molex ×2, depending on bundle
Form Factor
Standard ATX dimensions: 150 × 140 × 86 mm, weight: ~1.75 kg. Supports operation up to 5,000 m altitude.

WARRANTY DETAILS :
DeepCool offers a 5-year limited warranty, emphasizing confidence in durability and long-term usability.
