Product Overview

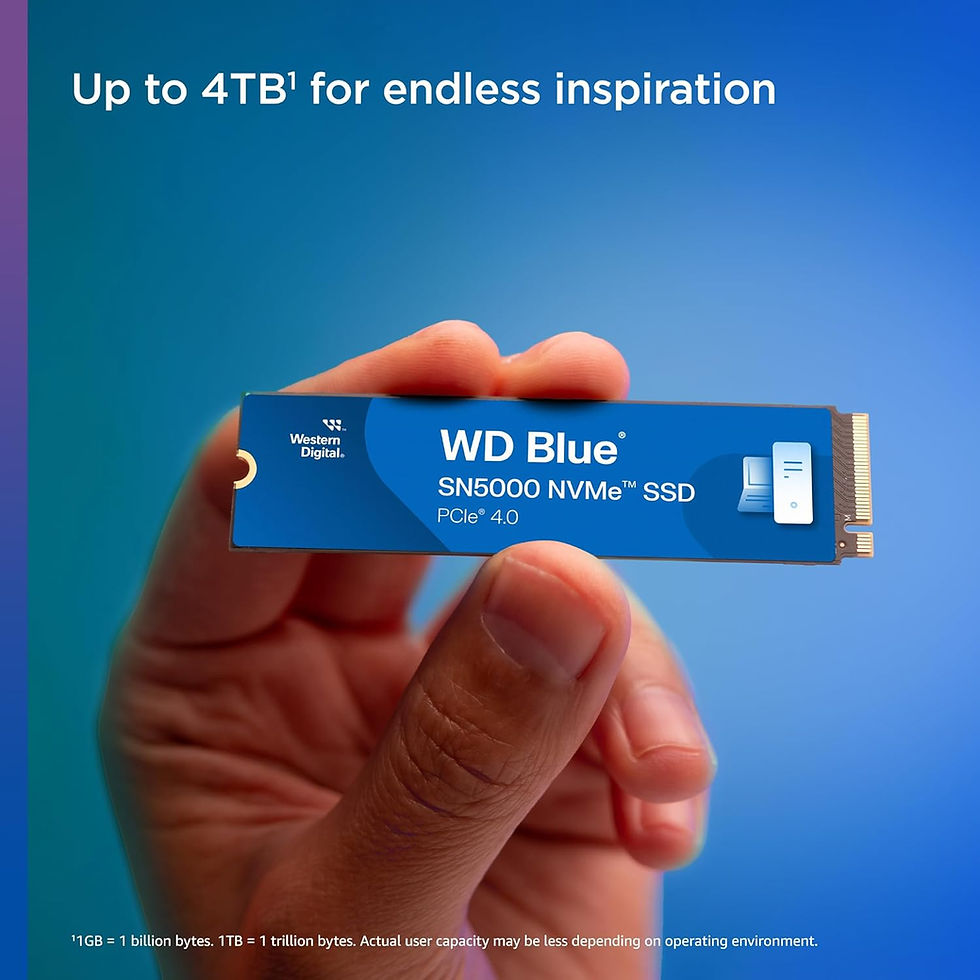

Model: WDS500G4B0E – WD Blue SN5000 NVMe SSD (500 GB capacity)
Form Factor: Standard M.2 2280 (80.15 × 22.15 × 2.38 mm), weighing approximately 5.7 g
Interface: PCIe Gen 4 ×4 (NVMe) for ultra-fast connectivity
Performance & Endurance
Sequential Read / Write Speeds: Up to 5,000 MB/s read and 4,000 MB/s write
Random Performance (4 KB IOPS):
Read: ~460K IOPS
Write: ~770K IOPS
Endurance: Rated at 300 TBW (Terabytes Written)
Power, Reliability & Environmental Specs
MTBF (Mean Time Between Failures): 1.75 million hours
Power Consumption:
Active: ~75 mW
Sleep (low power): ~5 mW
Average: ~6.3 mW
Operating Temperature: 0 °C to 85 °C
Non-Operating (Storage): –40 °C to 85 °C
Shock & Vibration:
Shock: 1,500 g at 0.5 ms (half‑sine)
Vibration (operating): 5 g RMS (10–2000 Hz)
Vibration (non-operating): 4.9 g RMS (7–800 Hz)
Certifications: BSMI, CAN ICES‑3, CE, FCC, KCC, Morocco, RCM, TUV, UL, VCCI — broadly compliant with global standards
Software & Features
Western Digital nCache™ 4.0: Enhances sustained write performance, especially during large data transfers
Included Software:
WD SSD Dashboard for drive health monitoring, firmware updates, diagnostics
Acronis True Image WD Edition for data migration and cloning .
Warranty Details
Warranty: 5‑Year Limited Warranty, or until TBW limit is reached — whichever comes first
