Technical Specifications
This model is an Intel Z760 chipset mini‑ITX board (LGA1700), similar feature‑wise to the Z790M‑ITX WiFi:
CPU Compatibility: Intel 12th, 13th, and 14th Gen Core processors; supports Hybrid Boost, Turbo Boost Max 3.0, Thermal Velocity Boost, and Adaptive Boost Technology Reddit+12mostechcomputers.in+12Flipkart+12.
Memory:
2 × DDR5 DIMMs, dual-channel
Up to 96 GB maximum
Supports DDR5 up to ~7000 MHz (OC) with XMP 3.0; natively up to 4800 MHz mostechcomputers.in+1.
Power & VRM: 7+1+1 phase Dr.MOS design with 50 A chokes and Nichicon 12K black caps—typical of high-end mini‑ITX ASRock boards mostechcomputers.in+2Ezpz Solutions+2.
PCIe & Expansion:
1 × PCIe 5.0 ×16 (x16 mode)
Vertical M.2 Key‑E slot for Wi‑Fi/BT modules Multitronic+5mostechcomputers.in+5GSC Computers+5.
Storage:
2 × Hyper M.2 (PCIe Gen4 ×4) sockets
4 × SATA III ports with RAID 0/1/5/10 support GSC Computers+4mostechcomputers.in+4Ezpz Solutions+4.

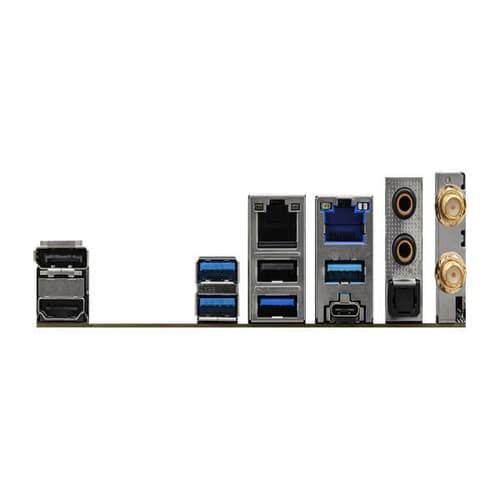

I/O & Networking:
HDMI 2.1, DP 1.4 (up to 8K @60 Hz)
1 × 2.5 Gb LAN (Intel I226V), 1 × Gigabit LAN (I219V)
Built-in Wi-Fi 6E (802.11ax) + Bluetooth 5.3 with dual‑band 2×2 and MU‑MIMO support GSC Computers+4mostechcomputers.in+4Flipkart+4.
Audio: Realtek ALC897 7.1 channel audio codec with Nahimic software Ezpz Solutions+5mostechcomputers.in+5Multitronic+5.
USB Ports:
Rear: USB 3.2 Gen2 Type‑C & Gen2 Type‑A, multiple Gen1 and USB2.0
Internal header for front Gen2x2 Type‑C support Multitronic+2GSC Computers+2.
Extras: BIOS Flashback button, multi-speed fan headers, RGB/ARGB headers, premium build with 8-layer PCB, Auto Driver Installer & App Shop utilities Ezpz Solutions.
Form Factor: Mini‑ITX (≈17 × 17 cm), includes I/O shield, SATA cables, Bluetooth antenna, M.2 screws and manual mostechcomputers.in+1.
🛡️ Warranty & After‑Sales (India)
Warranty Period: Indian retailers typically advertise a 3-year replacement warranty for Z-series ASRock boards (as per Z790M‑ITX listing) Reddit+9mostechcomputers.in+9Reddit+9.
Official ASRock Coverage: Manufacturer provides 1 year limited warranty to authorised distributors; any extended coverage is handled by the retailer—not guaranteed by ASRock directly mostechcomputers.in+4Reddit+4Reddit+4.
